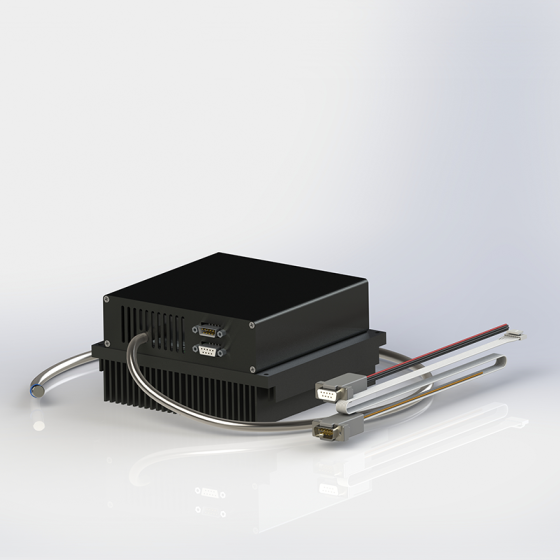

Laser 15W 17W 19W

The fiber-coupled infrared diode laser system integrates

• Diode Laser

• Fiber-coupled

• Optical elements

• Laser power supply

• Temperature control

into a single enclosure,  converting electrical energy into laser light energy.

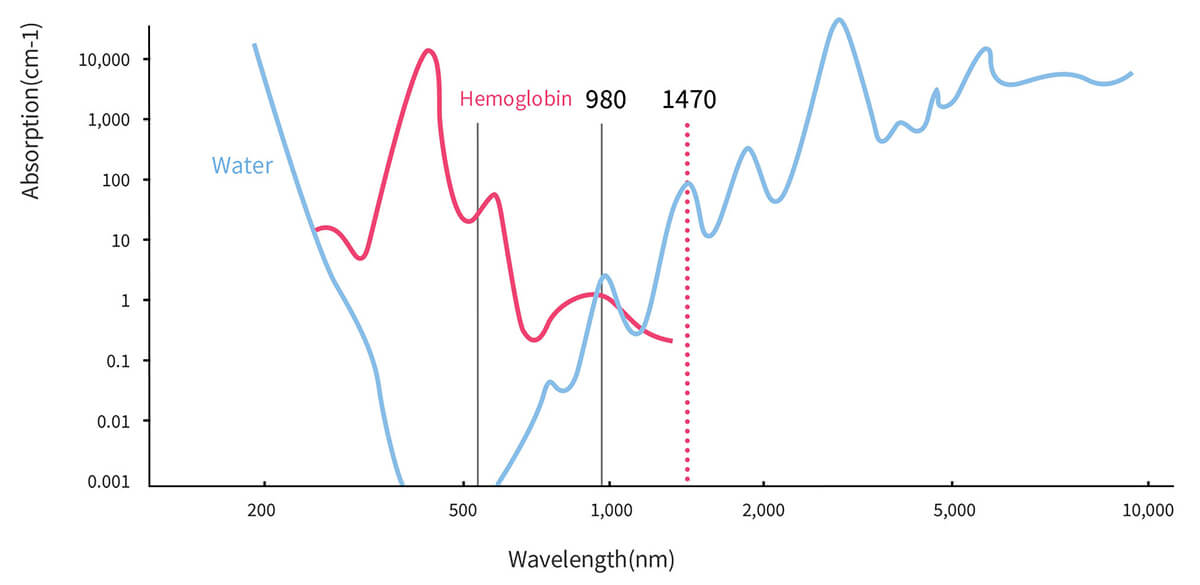

Principle

Utilizing the principle of selective absorption at wavelengths of 980nm and 1470nm,

it is widely used in soft tissue surgery, vascular treatment, tissue ablation, and

skin disease treatment, providing advanced solutions for medical professionals worldwide.

Application

A whole new world of therapeutic applications and clinical results - this is our DOD laser system.

It's the most versatile and universal medical laser system on the market today.

DOD lasers are designed to work in perfect combination with a broad spectrum of special medical fibers

and application kits developed by DOD and its companies.

DOD diode laser – the most versatile and universal medical laser in the market today.

This highly compact diode laser features the combination of two wavelengths, 980nm and 1470nm,

offering a variety of tissue interactions. For open and endoscopic procedures with contact or

non-contact delivery options. Single wavelength versions are available as well.

Each wavelength can be individually selected or blended together to offer the perfect desired tissue

effects such as incision, excision, vaporization, hemostasis, and coagulation of soft tissue.

For the first time the doctors can perform laser surgery selectively, with settings individually tailored to

the tissue type and the desired tissue effects and thus corresponding to the therapeutic needs.

Features

• The only multi-wavelength fiber-coupled laser in China to receive US FDA certification.

• High power output, modular integrated packaging.

• Wide range of applications.

• Utilizes wavelength selective absorption principle: selectively absorbs pigments or water molecules.

• Can be selected for single independent output or simultaneous output
